Source Text Connection — Fields Tab

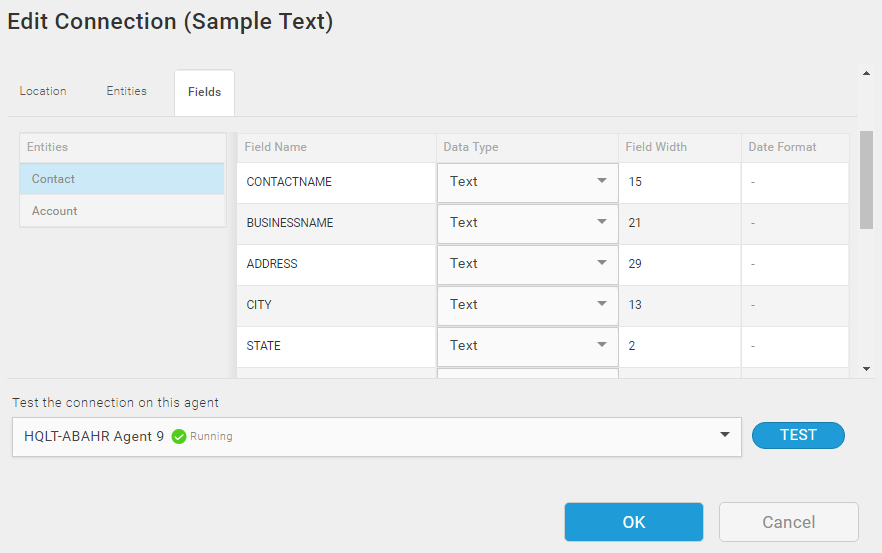

The Fields tab on the Text Connection dialog displays the field names for the entities configured on the Entities tab.

From the Fields tab, you can:

• Make changes to the Field name and data type of individual fields in your text file.
• Revert all of your fields to the original source names and formats.
• Reset metadata using the Refresh Schema option on the Gear menu for the Entity.
• Add or delete fields from your text file using the Add above, Add below, or Delete options on the Gear menu for the Field row.

Note: The Fields tab is not displayed for Binary files and Text content files because the files are not read. The text or content present in those files is copied to a new file in the target directory.

Accessing The Fields Tab

1. Select More > Connections from the menu.
2. From the Connections page, select Add to open the Add a New Connection dialog or select Edit from the Gear menu for the Connection.
3. Select the Fields tab.

Configuring The Fields Tab

1. Select an Entity Name in the left pane.
2. If this is the first time you are accessing Fields for the entity, select the Generate fields schema from your data link in the right pane to display the associated fields.
3. Select the Field Name and type over the name to modify it if necessary.
4. Use the Fields Tab Fields table below to configure the properties for the selected Field.
5. Select OK to save the Connection.

Fields Tab Fields

Field	Definition
Entities	List of Entities configured for this Connection on the Entities tab. Each Entity represents a separate text file or a set of text files.
Field Name	Name of the field for the selected Entity. If you did not select Field Names in the First Row option on the Entities tab, the field names display as numbered fields, such as Field1, Field2. Type over the Field Name to edit it. Note: If any fields in the header row contain quotes and you use the Generate fields option, you must edit the Field Names shown here to include the quotes and then reset metadata or the data for the field with quotes is not sent to the target datastore.
Data Type	The data type for this field. If Date/Time is selected, configure the Date Format field.
Width	Set the length of the field. Note: Width cannot be shorter than the Field name.
Trim	For fixed width files, you can choose to trim extra spaces or whitespace from a field. From the drop-down list, select: Both sides — Trim any spaces on either the left or right of the field. Left — Only trim spaces to the left of the field. Right — Only trim spaces to the right of the field. None — Do not trim spaces.
Date Format	Displays only when Date/Time is the selected data type. Type a format in the Date Format field. For more information, see Text Connector DateTime Formats.
