Managing Maps

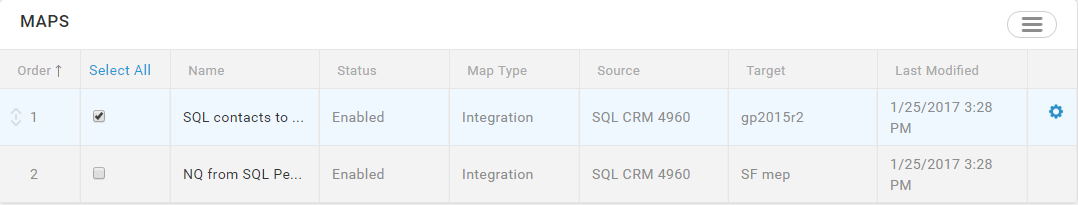

When your Solution runs, enabled Maps are processed in order. If one Map performs a task that depends on another task being completed, the order is important. Drag and drop the Maps to change the order.

Link to enable or disable all checkboxes in the column. Selected Maps can be Exported, Enabled/Disabled, or Locked/Unlocked.

User specified name for the Map.

Indicates the Map's current status. Status options include:

•   Enabled — Map is complete and ready to run the next time the Solution executes.

•   Disabled — Map is complete, but is not ready to run the next time the Solution executes.

•   Incomplete — Map is missing part or all of its configuration. This Map is not ready to run the next time the Solution executes.

•   Lock Icon — Map is locked and cannot be accessed by other users. Select the lock to display the user name of the user locking the Map, and the date and time it was locked. The lock displays in addition to one of the above status options. See Locking And Unlocking Maps.

Types include:

•   Integration

•   Message

•   Request Response

Name of the Connection configuration for the source datastore.

Name of the Connection configuration for the target datastore. For Integration Maps, there may be more than one target Connection listed. Integration Maps can integrate data into more than one target datastore.

Date and time that the Map was last modified.

Menu options include:

•   Create

•   Import

•   Export Selected

•   Lock/Unlock Selected

•   Enable/Disable Selected

•   Delete Selected

Opens the selected Map for editing. Changes to Maps are saved immediately when you select Apply or OK on the Map. If a scheduled Solution runs while a Map is being edited, any saved changes are used when the Solution runs. To prevent a Solution from using a Map that is in the process of being edited, use the Disable option.

Creates a copy of the selected Map with the name Copy of mapname, where mapname is the name of the original Map. New Maps are saved immediately.

Duplicated Map Status is set as follows, if the original Map is:

•   Incomplete — New Map is set to Incomplete.

•   Enabled or Disabled — New Map is set to Disabled

Map configuration fields updated when the Map is run, such as Last Run Date/Time, are not included in the duplicated Map.

The most recent revision of the original Map is used when making a copy. See Map Revisions.

For a duplicated Event Map to generate the required endpoint URL, set the Map Status to Enabled, then open the Map and save it.

Deletes the Map from the Solution. A warning message displays. Select OK to permanently delete the selected Map from this Solution.

Runs the selected Map immediately without running any other Maps in the Solution. If the Solution or any other Map in the Solution is running, this option is disabled. To monitor the status of the Map navigate to Execution History. See Viewing Execution History..

Opens the Revisions dialog, which contains a list of revisions for the selected Map. Use the Revisions dialog to revert the Map to a prior revision or export a revision. See Map Revisions.

Locks the Map so it cannot be edited by another user or unlocks a locked Map. Only Administrator Users can manually lock and unlock Maps. See Locking And Unlocking Maps.

Once a Map is complete and has no Errors, it is Enabled :

•   To turn a Map off, select Disable. The Map is ignored when the Solution runs.

•   To turn a Map back on, select Enable.
